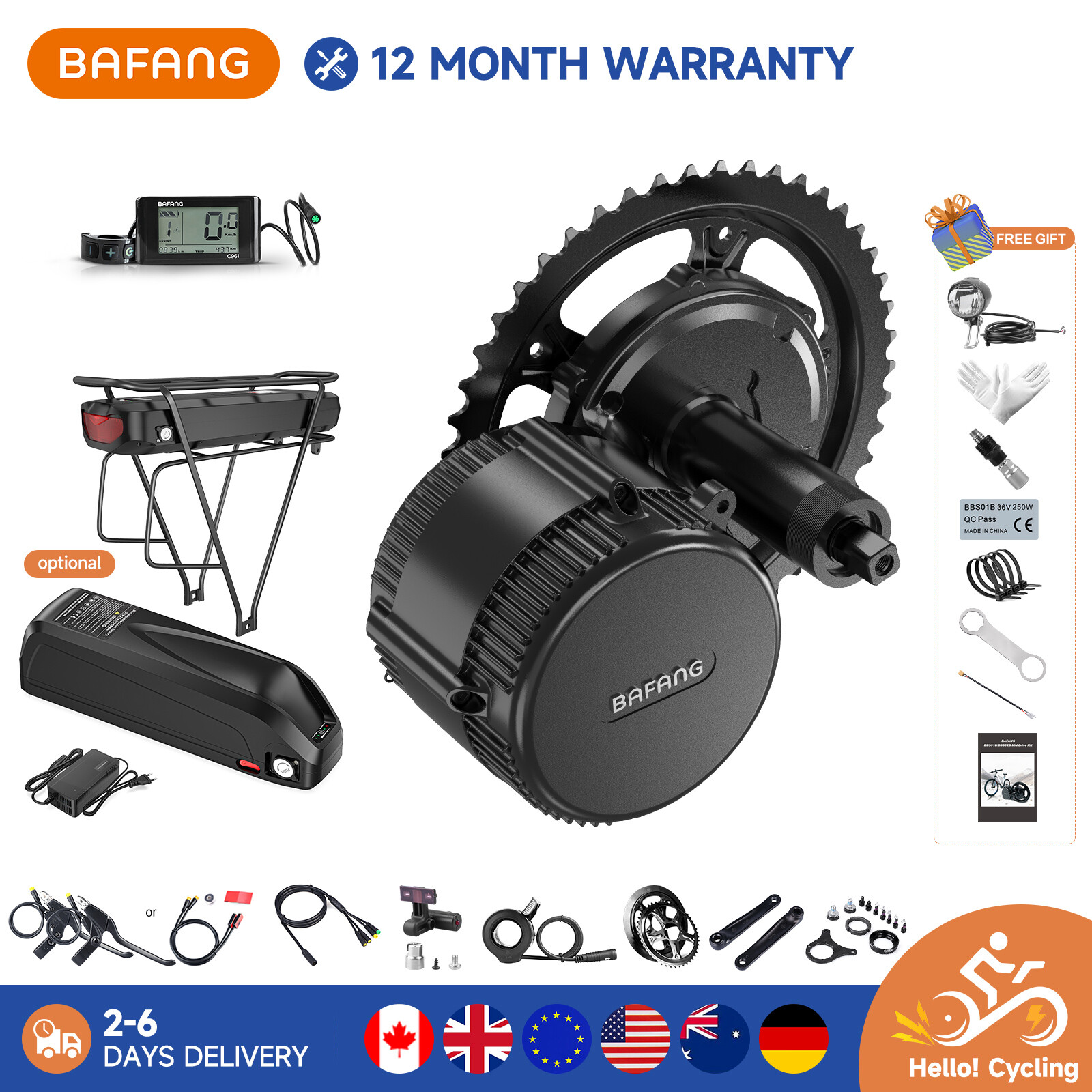

BAFANG BBS02B Mid Drive Motor 48V 750W Electric bicycle Conversion
Kits 17.5AhUSD $415.12
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Product Description
Product Description BAFANG BBS02B 48V 750W Mid Drive Motor Specification: Model: BBS02B Type: Brushless Gear Motor Voltage: 48V Wattage: 750W Color: Black Net Motor Weight: 4.2kg Position: Mid Crank Motor Bracket Bottom Length: 68mm(bottom bracket width shall be 68-73mm) Waterproof Grade: IP65 Certification: CE/EN/ROHS Working Temperature: -20-80C℃ Controller: Integrated Inside the Motor Controller Current: 25A With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 750W, a reduction ratio of 1: 21.9, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes 【Hailong 48V 17.5Ah Specification】: Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in Panasonic or LG 35ET 3500mah.65PCS Array mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.4KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance [Hailong 48V 18Ah Specification]: {ps: the size is different with other capacity,pls kindly check it before order. } Normal Voltage: 48V Rated Capacity:18 AH Battery Cell:Built in zhenhua 18650 3000mah 78PCS Array mode:13s6P Battery size:366*91*127mm Battery Weight:4.0±0.2Kg Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance 【Rear Rack 48V 17.5Ah Specification】: Rear Rack 48V 17.5Ah Specification: Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in Luhua 2500mah 91PCS Array mode:13s7p WH:840 Battery size: 475.9*162*88.9mm Battery Weight:7.35KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance [Hailong 48V20Ah Specification]: Nomal Volt: 48V Rated Capacity:20AH Weight:6kg Battery cell:LG 21700 5000mah Array mode:13S4P 52pcs WH:960 Operating Voltage:36.4V~54.6V Constant Voltage:2A unit 54.6V USB Port: Yes Operating Voltage:36.4V~54.6V Standard Charge Current: 4A Waterproof level: IP54 Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance 【Packaging includes】: 1 * 48V 750W Mid Drive Motor 1 Pair * Brake Level (if you want to exchange for the hydraulic brake sensors,pls leave us message) 1 Pair * Crank 1 Pair * Chainwheel (44T/46T/48T/52Toptional, pls leave us message for exchange other size) 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 * Display (850C/500C/DPC18/C965/C961/750C display optional) 1 * 1T4 Cable 1 * Accessories 1 * User Manual Free Gift: 1* BBS 6V headlight
1* Wrench tool *****US STOCK,FAST SHIPPING! Pls note that the DPC18(0-9) Doesn't contain the Sport and ECO mode. FAQ : 1)What is the max voltage this motor can handle? The 48V model should only be powered by a 48V battery when fully charged a 48V battery will actually produce 54.6V approximately. 2)Which bike can use this motor kits? Bottom Bracket Width shall be 68-73mm or 100mm. 3)What is the Generations of this motor？ It is the newest BAFANG version BBS02B, with the gear sensor&light function. About Us Payment Shipping Returns Contact Us 1.We has been specializing in DIY electric bike for more than 8 years.Has extensive experience in modification 2.We has a good cooperative relation with BAFANG/Tongsheng/MXUS company, All the items we sell are genuine and authorized. 3.We provide high quality products and professional services 1.We accept the following payment way: paypal,google pay,Visa, Matercard, American express 1.We will ship the item out within 24 hours after receive your payment. 2. Domestic shipping time about 2-5 days. Other international order deliver in 1-7 working days. We provide US/UK/EU/AU/CA local return and exchange service Product quality problems - we pay return shipping costs or resend a new one The package is a shortage - free resend or refund Parcel lost - unconditional refund or resend We offer business service on Chinese working time 8:30-18:00 Monday to Friday.
About Us 1.We has been specializing in DIY electric bike for more than 8 years.Has extensive experience in modification 2.We has a good cooperative relation with BAFANG/Tongsheng/MXUS company, All the items we sell are genuine and authorized. 3.We provide high quality products and professional services
Payment 1.We accept the following payment way: paypal,google pay,Visa, Matercard, American express
Shipping 1.We will ship the item out within 24 hours after receive your payment. 2. Domestic shipping time about 2-5 days. Other international order deliver in 1-7 working days.
Returns We provide US/UK/EU/AU/CA local return and exchange service Product quality problems - we pay return shipping costs or resend a new one The package is a shortage - free resend or refund Parcel lost - unconditional refund or resend
Contact Us We offer business service on Chinese working time 8:30-18:00 Monday to Friday.
