Electric Bicycle E-bike BAFANG BBS02 36V 500W Mid drive Motor

Product Description

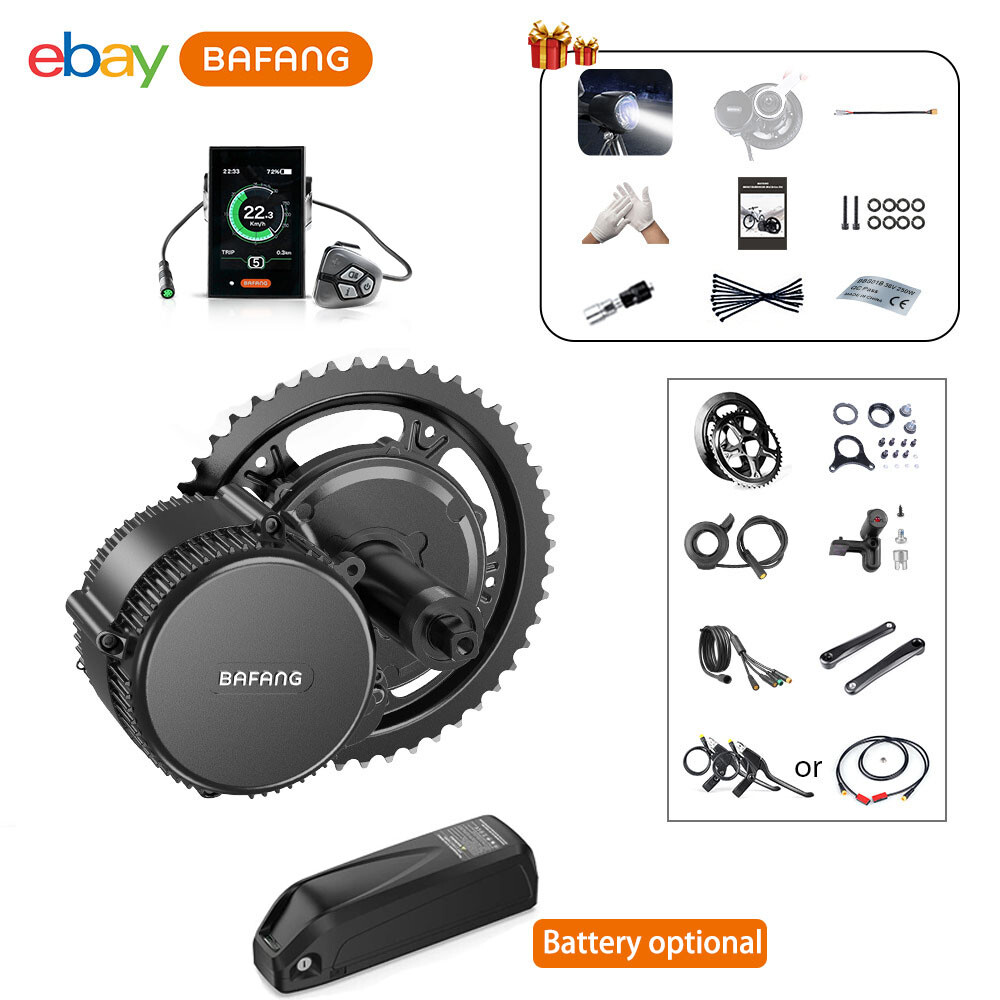

Product Description 36V 500W Bafang Mid Drive Motor With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. Core Data Position: Mid Motor Wheel Diameter (Inch): Optional Construction: Gear drive Rated Voltage (DCV): 36 n0 (Rpm): 120/126 Rated Power (W): 500 nT(Rpm): 113/118 Max Torque: 100 N.m Efficiency (%): ≥ 80 Pedal Sensor: Speed Shaft Standard: JIS Color: Black Weight (kg): 4.3 Noise Grade (dB): < 55 Operating Temperature: -20-45℃ Function: E-Brake: Yes Gearsensor Function: Yes Light Drive Capacity (DCV / W): 6 /3(max) Further Specifications Speed Detection Signal (Pulses/Cycle):1 Reduction Ratio：1:21.9 Magnet Poles (2P): 16 Tests & Certifications IP: IP 65 Certifications: ROHS Salt Spray Test Standard(h): 96 Hailong 36V17.4Ah battery specification
Type：Hailong downtube
Parameter:36V17.4Ah
Battery Cell:18650 2900mAh
Array Mode:10s6p 60PCS
BMS:25A
Peak current:60A
Charge cut off voltage:42V
Discharge cut off voltage:28V
Size:365*90*110mm
Weight:3.5KG
USB Port: yes
Cycle Life:1000 times
Charing Current:2A
Charge Temperature:0~45℃
Discharge Temperature:-15℃-65℃
Way of Charge:CC/CV
Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance Packaging included: 1 * 36V 500W Mid Drive Motor 1 Pair * Brake Level 1 Pair * Crank 1 Pair * 44T Chainwheel 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 * Display (P850C/C965/DM03/750C Bluetooth/850C/P850C/P860C/500C optional) 1 * 4 in 1 Cable 1 * set Lock nuts 1 * User Manual 1 * XT60 battery extension cable Promotion:----Free Gift (1*6V headlight + 2* 36V 250W stickers + install accessories for 73mm bottom bracket) 1 * Battery&AU charger(optional) Note: If you choose"No battery",there is no battery comes with the motor kits. FAQ: Which bike can use this motor kits? Bottom Bracket Width shall be 68-73mm, fit almost 99.99% bike on the market What is the max voltage this motor can handle? 36V battery. Pls don't use 48V battery with this 36V Motor. Advantage: ★ US Stock,Fast Shipping. ★ US return address, 1 year warranty. ★ Offer local repaired service. About Us Payment Shipping Returns Contact Us 1.We has been specializing in DIY electric bike for more than 8 years.Has extensive experience in modification 2.We has a good cooperative relation with BAFANG/Tongsheng/MXUS company, All the items we sell are genuine and authorized. 3.We provide high quality products and professional services
